Replacement
[Tailgate lower trim]

•
Put on gloves to prevent hand injuries.

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Take care not to scratch the body surface.
1.

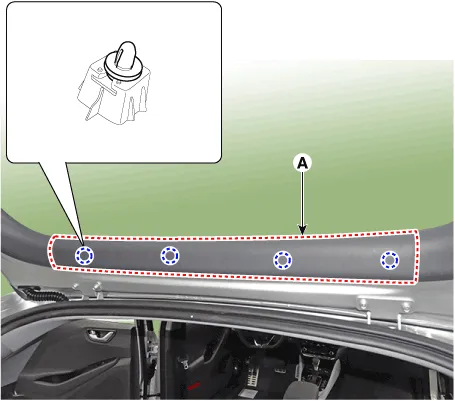

Using a screwdriver or remover, remove the tailgate lower trim (A).

2.
To install, reverse the removal procedure.

•
Replace any damaged clips.
[Tailgate upper trim]

•
Put on gloves to prevent hand injuries.

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Take care not to scratch the body surface.
1.

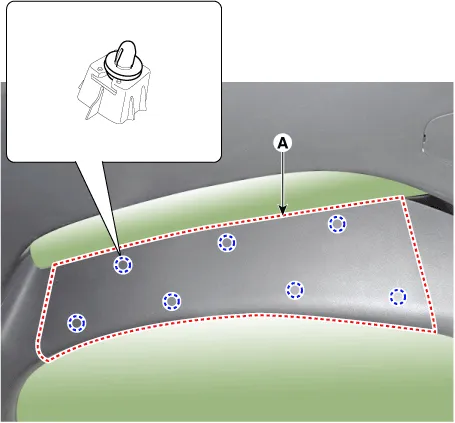

Using a screwdriver or remover, remove the tailgate upper trim (A).

2.
To install, reverse the removal procedure.

•
Replace any damaged clips (or pin-type retainers).
[Tailgate center trim]

•
Put on gloves to prevent hand injuries.

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Take care not to scratch the body surface.
1.
Using a screwdriver or remover, remove the tailgate center trim (A).

2.
To install, reverse the removal procedure.

•
Replace any damaged clips.
[Tailgate side trim]

•
Put on gloves to prevent hand injuries.

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Take care not to scratch the body surface.
1.
Remove the tailgate upper trim.
2.
Remove the tailgate center trim.
3.
After loosening the mounting screw, then remove the tailgate side trim (A).

4.
To install, reverse the removal procedure.

•
Replace any damaged clips (or pin-type retainers).

    Component Location1. Tailgate trim

    Component Location 1. Tailgate latch assembly
