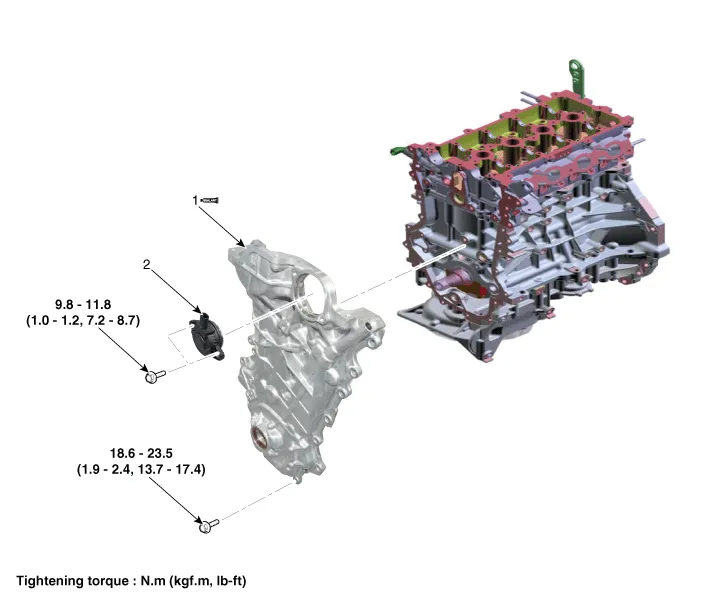

Components

1. Timing chain cover
2. Oil control solenoid (OCS)

    Removal and Installation1.Remove the crankshaft damper pulley.(Refer to Timing System - "Crankshaft Damper Pulley")2.Remove the front oil seal (A).3.Apply engine oil to a new oil seal lip & outer surface.

    RemovalEngine removal is not required for this procedure.    â€¢ Be sure to read and follow the "General Safety Information and Caution" before doing any work related with the high voltage system.
