Hyundai Ioniq (AE): AVN System / USB Jack. Repair procedures

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Body Electrical System / AVN System / USB Jack. Repair procedures

Removal

1.	Disconnect the battery (-) terminals.

2.	Remove the floor console assembly. (Refer to Body - "Floor Console Assembly")

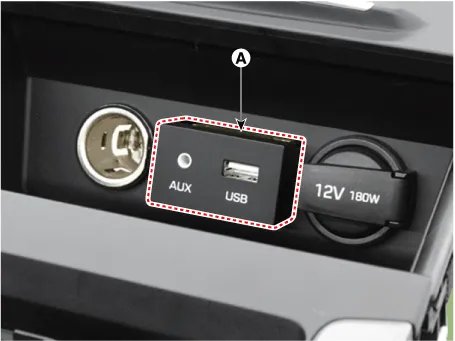

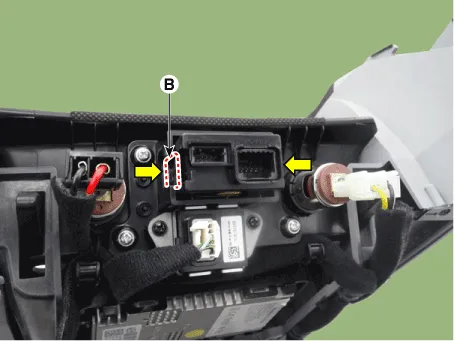

3.	Remove the multimedia jack (A) from the console under cover after releasing the fixed hooks (B).

Installation

1.	Connect the multimedia jack connector.

2.	Install the multimedia jack.

3.	Install the floor console assembly.

❮USB Jack. Description and operation

DescriptionThe multimedia jack on the console upper cover is for customers who like to listen to external portable music players like the MP3 etc., through the vehicle's sound system when it is linked to this jack.
