Removal and Installation

•
Be sure to read and follow the "General Safety Information and Caution" before doing any work related with the high voltage system. Failure to follow the safety instructions may result in serious electrical injuries.
•
Be sure to read and follow the "High Voltage Shut-off Procedures" before doing any work related with the high voltage system. Failure to follow the safety instructions may result in serious electrical injuries.
1.
Remove the cylinder head assembly.
(Refer to Cylinder Head Assembly - "Cylinder Head")
2.

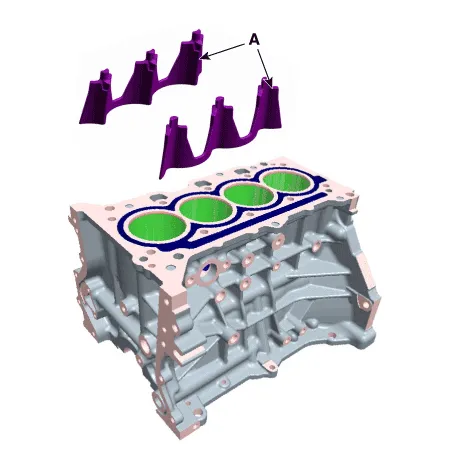

Remove the water jacket separator (A).

3.
Install in the reverse order of removal.

    Components1. Water jacket separator

    Components1. Rear oil seal
