Hyundai Ioniq: Brake System / Brake Line. Components and components location

Hyundai Ioniq (AE) 2017-2025 Service Manual / Brake System / Brake System / Brake Line. Components and components location

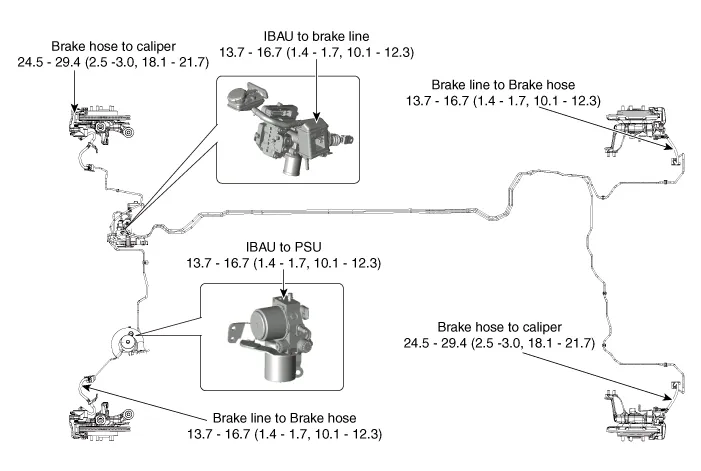

Components

    Repair procedures

    Operation and Leakage CheckCheck all of the following items : Component Procedure Integrated Brake Actuation Unit (IBAU) (A) and Pressure Source Unit (PSU) (B)Check brake operation by applying the brakes during a test drive...

    Brake Line. Repair procedures

    Removal1.Disconnect the brake fluid level switch connector, and remove the reservoir cap.2.Remove the brake fluid from the master cylinder reservoir with a syringe...

    Other information:

    Hyundai Ioniq (AE) 2017-2025 Service Manual: Description and operation


    DescriptionThe AAF (Active Air Flap) is located between radiator grille and radiator, and consists of an actuator and 6 air flaps. The system receives information from EMS, FATC, TCU, MCU and LDC via CAN communication . With this information, the AAF controls the motor properly and then the air flaps adjust air flow from the radiator grille...

    Hyundai Ioniq (AE) 2017-2025 Service Manual: Repair procedures


    Replacement1.Remove the battery (-) terminal.2.Remove the engine room under cover.(Refer to Engine Mechanical System - "Engine Room Under Cover")3.Remove the heater hose (A) and AEWP hose (B).4.Disconnect the lock pin to remove the heater hose pump connector (A)...
