Hyundai Ioniq. Charging Precautions

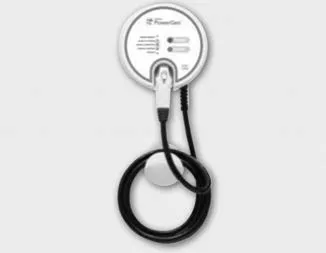

■ Normal Charger

Actual charger image and charging method may vary in accordance with the charger manufacturer.

WARNING

  • Electromagnetic waves that are generated from the charger can seriously impact medical electric devices such as an implantable cardiac pacemaker. When using medical electric devices such as an implantable cardiac pacemaker, make sure to ask the medical team and manufacturer whether charging your electric vehicle will impact the operation of the medical electric devices such as an implantable cardiac pacemaker.
  • Check to make sure there is no water or dust on the charging cable connector and plug before connecting to the charger and charging inlet. Connecting while there is water or dust on the charging cable connector and plug may cause a fire or electric shock.

WARNING

  • Be careful not to touch the charging connector, charging plug, and the charging inlet when connecting the cable to the charger and the charging inlet on the vehicle.
  • Comply with the following in order to prevent electrical shock when charging:
    - Use a waterproof charger.
    - Be careful when touching the charging connector and charging plug with your hands wet, or when standing in water or snow while connecting the charging cable.
    - Be careful when there is lightning.
    - Be careful when the charging connector and plug is wet.

WARNING

  • Immediately stop charging when you find abnormal symptoms (odor, smoke).
  • Replace the charging cable if the cable coating is damaged to prevent electrical shock.
  • When connecting or removing the charging cable, make sure to hold the charging connector handle and charging plug. If you pull the cable itself (without using the handle), the internal wires may disconnect or get damaged.This may lead to electric shock or fire.

CAUTION

  • Always keep the charging connector and charging plug in clean and dry condition. Be sure to keep the charging cable in a condition where there is no water or moisture.
  • Make sure to use the designated charger for charging the electric vehicle. Using any other charger may cause failure.
  • Before charging the battery, turn the vehicle OFF.
  • When the vehicle is switched OFF while charging, the cooling fan inside the motor compartment may automatically operate. Do not touch the cooling fan while charging.
  • Be careful not to drop the charging connector. The charging connector can be damaged.

    Scheduled Charging

    You can set-up a charging schedule for your vehicle using the AVN or BlueLink application. Refer to the Multimedia manual or the BlueLink manual for detailed information about setting scheduled charging...

    Normal Charge

    ..
