Hyundai Ioniq: Front Seat Belt / Height Adjust. Repair procedures

Hyundai Ioniq (AE) 2017-2025 Service Manual / Body (Interior and Exterior) / Front Seat Belt / Height Adjust. Repair procedures

Replacement
1.
Remove the front seat belt upper anchor.
(Refer to Front Seat Belt - "Front Seat Belt Pretensioner")
2.

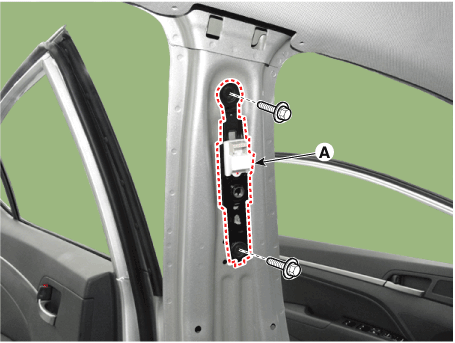

After loosening the mounting bolts, remove the height adjust (A).
Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb-ft)

3.
To install, reverse the removal procedure.

Replace any damaged clips (or pin-type retainers).

    Height Adjust. Components and components location
