Hyundai Ioniq: High Voltage Battery Control System / Pre-Charge Resistor. Schematic diagrams

Hyundai Ioniq (AE) 2017-2025 Service Manual / Hybrid Control System / High Voltage Battery Control System / Pre-Charge Resistor. Schematic diagrams

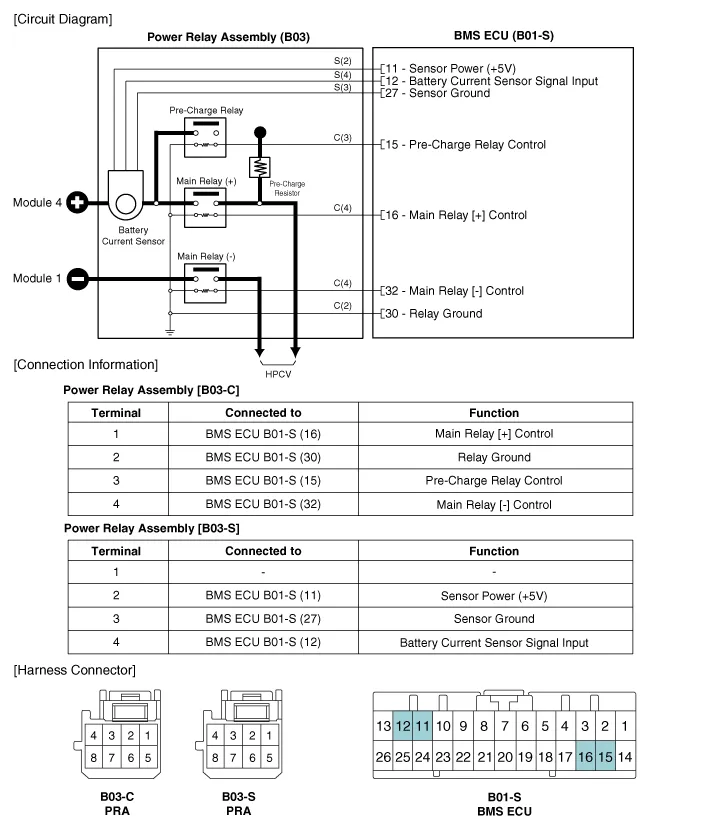

Circuit Diagram

    Pre-Charge Resistor. Specifications

    S..

    Pre-Charge Resistor. Repair procedures

    Removal1.Shut off the high voltage.(Refer to Hybrid Control System - "High Voltage Shut-off Procedures")2.Remove the rear seat cushion.(Refer to Body - "Rear Seat Assembly")3...
