Hyundai Ioniq: Head Restraints / Rear seat head restraints

Hyundai Ioniq (AE) 2017-2025 Owner's Manual / Safety system of your vehicle / Seats / Head Restraints / Rear seat head restraints

Hyundai Ioniq. Rear seat head restraints

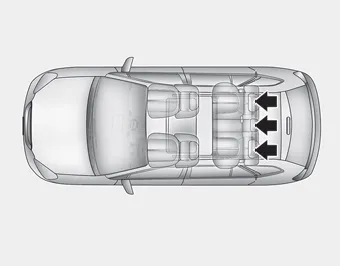

The rear seats are equipped with head restraints in all the seating positions for the passenger's safety and comfort.

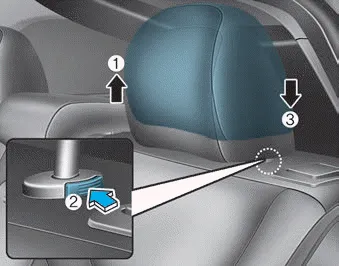

Adjusting the height up and down

Hyundai Ioniq. Rear seat head restraints

To raise the head restraint:

1. Pull it up to the desired position (1).

To lower the head restraint:

1. Push and hold the release button (2) on the head restraint support.

2. Lower the head restraint to the desired position (3).

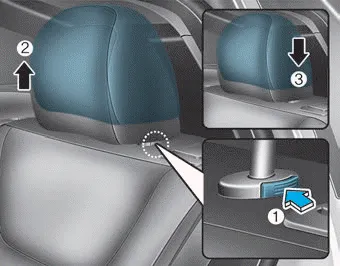

Removal/Reinstallation

Hyundai Ioniq. Rear seat head restraints

To remove the head restraint:

1. Raise the head restraint as far as it can go.

2. Press the head restraint release button (1) while pulling the head restraint up (2).

To reinstall the head restraint:

1. Put the head restraint poles into the holes (3) while pressing the release button (1).

2. Adjust the head restraint to the appropriate height.
