Hyundai Ioniq: Clutch System / Reservoir. Components and components location

Hyundai Ioniq (AE) 2017-2024 Service Manual / Engine Clutch System / Clutch System / Reservoir. Components and components location

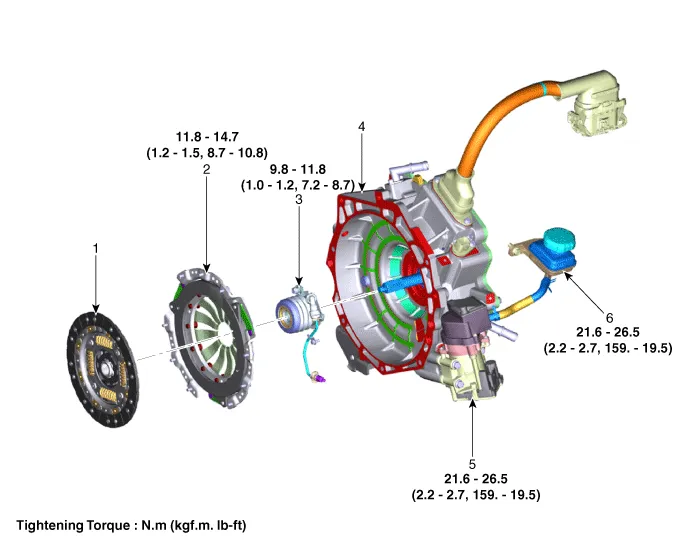

Components

1. Clutch disc
2. Clutch cover
3. Concentric slave cylinder
4. Hybrid motor assembly
5. Engine clutch actuator
6. Reservoir

    Clutch Cover And Disc. Repair procedures

    Removal1.Remove the hybrid motor assembly.(Refer to Hybrid Motor System - "Hybrid Motor Assembly")2.Remove the clutch cover assembly and clutch disc after loosening the bolts...

    Reservoir. Repair procedures

    Removal1.Turn the ignition switch OFF and disconnect the battery (-) terminal. 2.Remove the engine room under cover.(Refer to Engine Mechanical System - "Engine Room Under Cover")3...
