Hyundai Ioniq: High Voltage Battery Control System / Safety Plug. Schematic diagrams

Hyundai Ioniq (AE) 2017-2024 Service Manual / Hybrid Control System / High Voltage Battery Control System / Safety Plug. Schematic diagrams

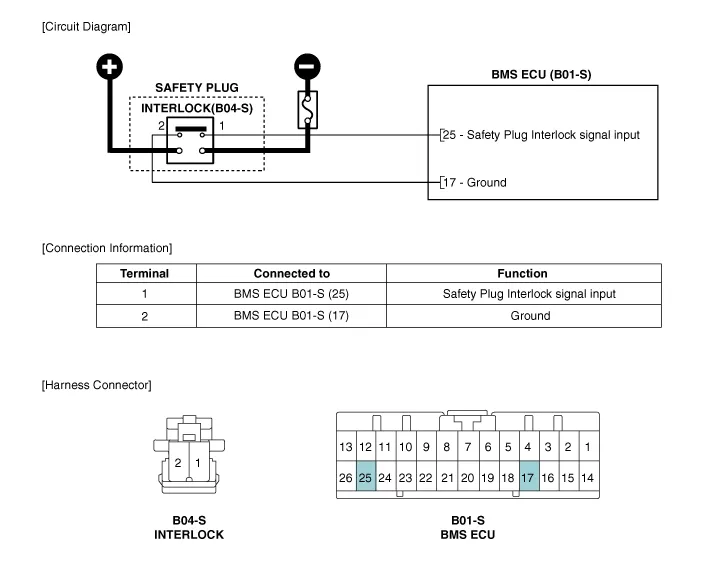

Circuit Diagram

    Safety Plug. Specifications

    Specification Item Specification Rated Voltage (V)400Rated Current (A)80Fuse Rated Current (A)125Fuse Melting TimeRated Current x 110%Min...

    Safety Plug. Repair procedures

    Removal1.Turn the ignition switch OFF and disconnect the auxiliary 12V battery negative (-) terminal.2.Remove the safety plug cover (A).3.Unfasten the hook (A) and then remove the safety plug (C) by pulling the lever (B) to the direction of arrow...
