Hyundai Ioniq (AE): High Voltage Battery Control System / Battery Temperature Sensor. Description and operation
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Hybrid Control System / High Voltage Battery Control System / Battery Temperature Sensor. Description and operation
| Description |

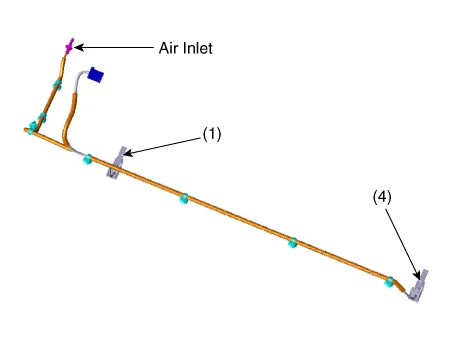

Battery Temperature Sensor is installed inside the high voltage battery pack assembly. It measures the temperature of the battery module 1, 4 and air inlet. In addition, it integrates the voltage sensing wiring for each module.
Removal • Be sure to read and follow the "General Safety Information and Caution" before doing any work related with the high voltage system.
Specification[Air Inlet] Temperature Resistance (kΩ) °C °F -50-58314.
