Hyundai Ioniq (AE): Dual Clutch System / Clutch Engagement Fork and Engagement Bearing. Components and components location

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / DCT(Dual Clutch Transmission) System / Dual Clutch System / Clutch Engagement Fork and Engagement Bearing. Components and components location

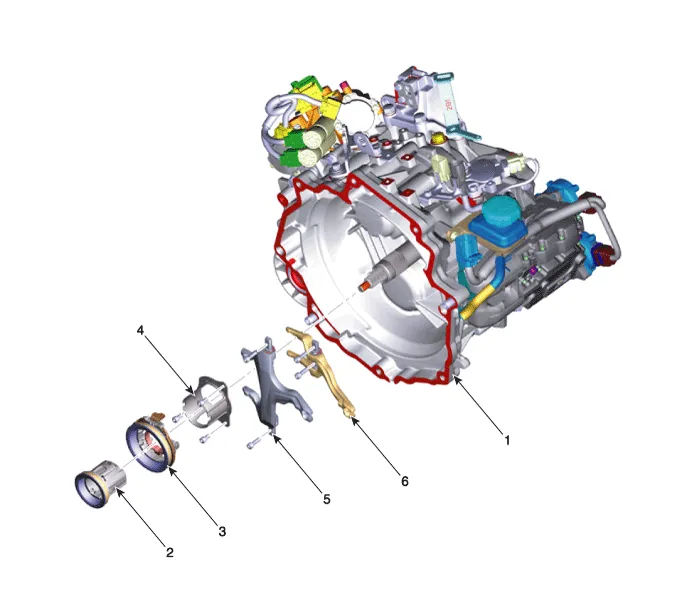

Components

1. Clutch housing
2. Engagement bearing 2 (Even)
3. Engagement bearing 1 (Odd)
4. Engagement bearing sleeve
5. Engagement frok 1 (Odd)
6. Engagement frok 2 (Even)

    Removal1.Remove the dual clutch transmission from the vehicle.(Refer to Dual Clutch Transmission System - "Dual Clutch Transmission")2.Remove the hybrid motor assembly from the dual clutch transmission assembly.

    Removal1.Remove the dual clutch transmission from the vehicle. (Refer to Dual Clutch Transmission System - "Dual Clutch Transmission")2.Remove the dual clutch assembly.
