Hyundai Ioniq (AE): Gear Actuator Assembly / Components and components location
| Components |

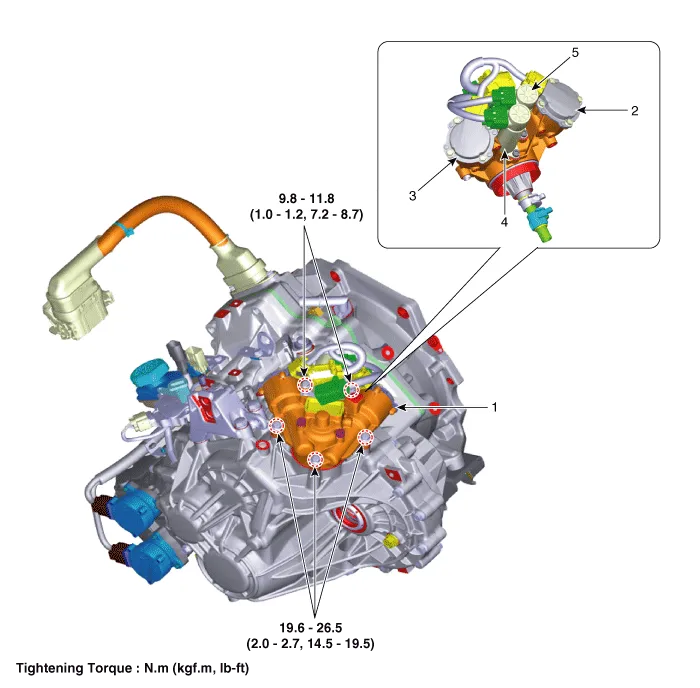

| 1. Gear actuator assembly 2. Shift motor (Even) 3. Shift motor (Odd) | 4. Select solenoid (Even) 5. Select solenoid (Odd) |
Specification Item Condition Specification Resistance (line to line)Shift motor 1/2126.
Other information:
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: emperature Control Actuator. Repair procedures
Inspection1.Turn the ignition switch OFF.2.Disconnect the temperature control actuator connector.3.Verify that the temperature control actuator operates to the cool position when connecting 12V to terminal 3 and grounding terminal 7.Verify that the temperature control actuator operates to the warm position when connected in reverse.
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Special service tools
Special Service Tools Tool Name / Number Illustration Description LKA Compensator(09964-C1100)Used for compensating front view camera unitBCW Sensor Correction Tool Set(09958-3T500)Used to correct the blind-spot radar unit.
