Hyundai Ioniq (AE): Rear Axle Assembly. Rear Hub - Carrier / Components and components location

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Driveshaft and axle / Rear Axle Assembly. Rear Hub - Carrier / Components and components location

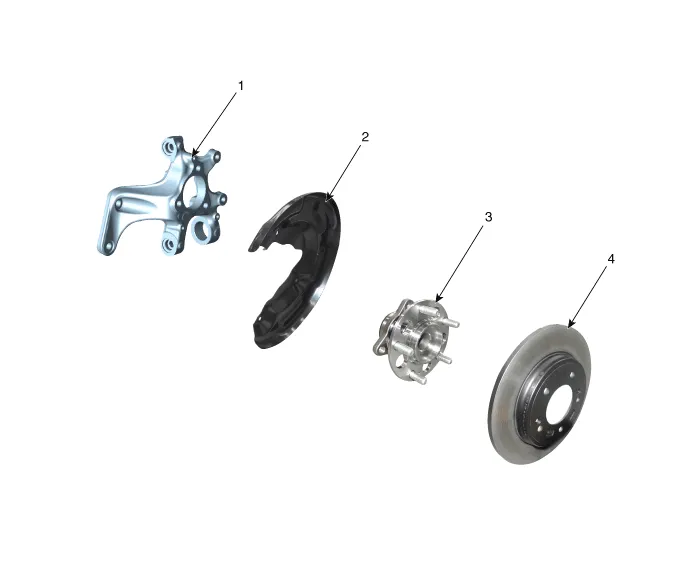

Components

1. Rear axle
2. Dust cover
3. Rear hub bearing
4. Rear brake disc

    Removal1.Loosen the wheel nuts slightly.Raise the vehicle, and make sure it is securely supported.2.Remove the rear wheel and tire (A) from the rear hub.
