Hyundai Ioniq (AE): SRSCM / Components and components location
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Restraint / SRSCM / Components and components location
| Components |

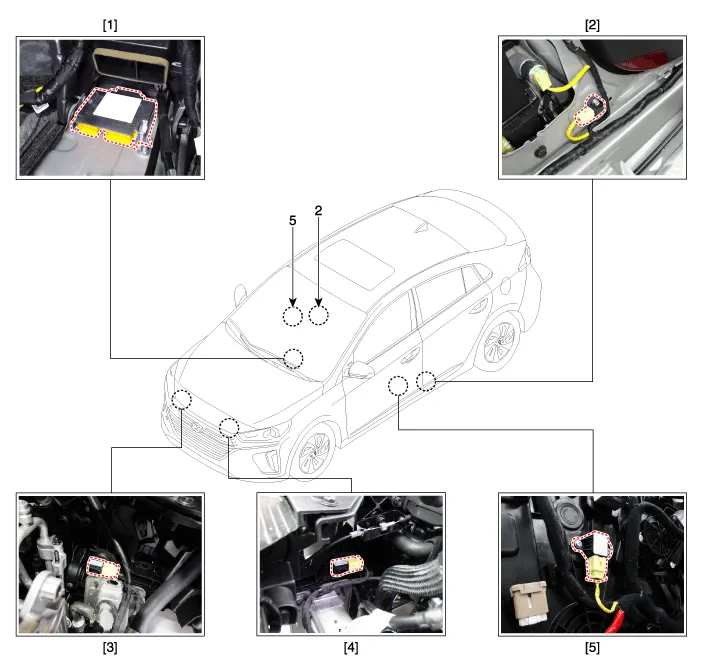

| 1. Supplemental Restraint System Control Module (SRSCM) 2. Pressure Side Impact Sensor (P-SIS) 3. Front right Pressure Impact Sensor (FIS) | 4. Front left Pressure Impact Sensor (FIS) 5. Gravity Side Impact Sensor (G-SIS) |
