Hyundai Ioniq (AE): Cooling System / Cooling Fan. Components and components location
| Components |

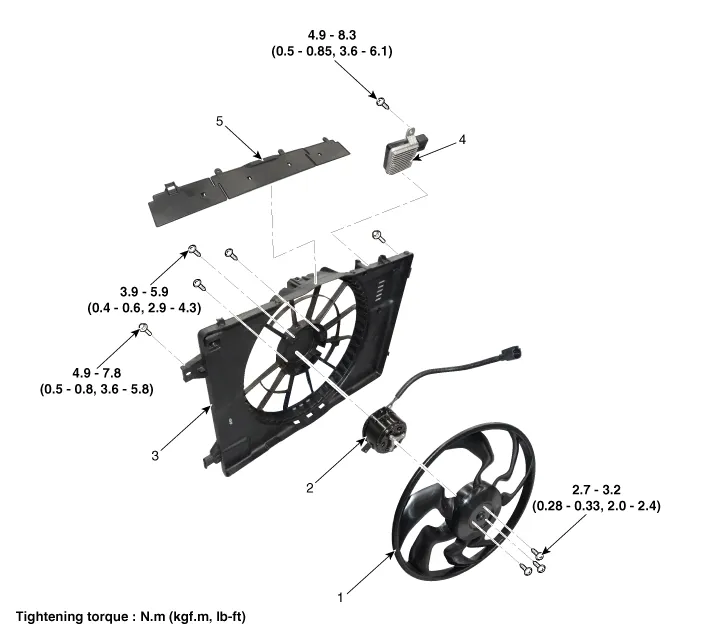

| 1. Cooling fan 2. Fan motor 3. Cooling fan shroud | 4. Cooling fan controller (PWM) 5. Cooling fan upper guard |
Engine Coolant Refilling and Bleeding [Drain] • Never remove the reservoir tank cap when the engine is hot.• Serious scalding could be caused by hot fluid under high pressure escaping from the radiator.
Specifications Items Performance spec Fan type PULLER Fan speed control PWM Air flow rate [m³/h (yd³/h)] 2,150 - 8% min.
Other information:
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Ambient Temperature Sensor. Repair procedures
Inspection1.Check the resistance of the ambient temperature sensor between terminals 1 and 2 whether it changes by changing the ambient temperature.1. Ambient Sensor (+)2. Sensor groundSpecification Ambient temperature [°C (°F)] Resistance between terminal 1 and 2 (
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Mode Control Actuator. Description and operation
DescriptionThe mode control actuator is located at the heater unit.It adjusts the position of the mode door by operating the mode control actuator based on the signal of the A/C control unit. Pressing the mode select switch makes the mode control actuator shift in order of Vent → Bi-Level → Floor → Mix.
