Hyundai Ioniq (AE): Gear Actuator Assembly / Description and operation
| Description |
| • |
Components location : DCT (Dual Clutch Transmission)
|
| • |
Function

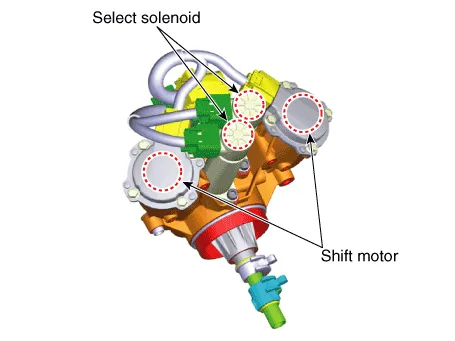

The gear actuator is comprised of the shift motor and select solenoid. Gear actuator shift motor and select solenoid receive signals from TCM to control the gear. |
Specification Item Condition Specification Resistance (line to line)Shift motor 1/2126.
Circuit Diagram
Other information:
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Mode Control Actuator. Description and operation
DescriptionThe mode control actuator is located at the heater unit.It adjusts the position of the mode door by operating the mode control actuator based on the signal of the A/C control unit. Pressing the mode select switch makes the mode control actuator shift in order of Vent → Bi-Level → Floor → Mix.
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Rear Corner Radar Unit. Repair procedures
Removal1.Disconnect the negative (-) battery terminal.2.Remove the rear bumper.(Refer to Body - "Rear Bumper")3.Remove the rear corner radar unit (A) after loosening the mounting nuts. • Take care not to separate the bracket from rear bumper when removing the rear corner radar sensor.
