Description
•

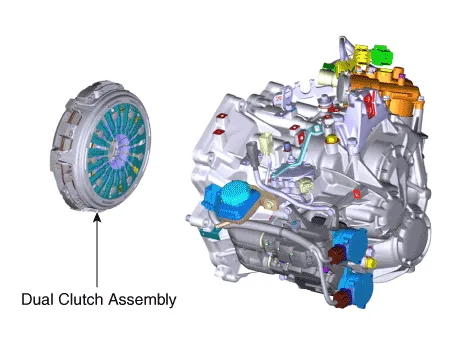

Components location : DCT (Dual Clutch Transmission)

•
Function
The dual clutch is installed within the transmission.
The dual clutch is comprised of an odd clutch and an even clutch. The odd clutch transfers and cuts off engine and motor power to the transmission when shifting odd gears. The even clutch transfers and cuts off engine and motor power to the transmission when shifting even gears.

    Components1. Retaining ring2. Spline hub3. Snap ring4. Dual clutch assembly
