Hyundai Ioniq (AE): Dual Clutch System / Dual Clutch Assembly. Components and components location

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / DCT(Dual Clutch Transmission) System / Dual Clutch System / Dual Clutch Assembly. Components and components location

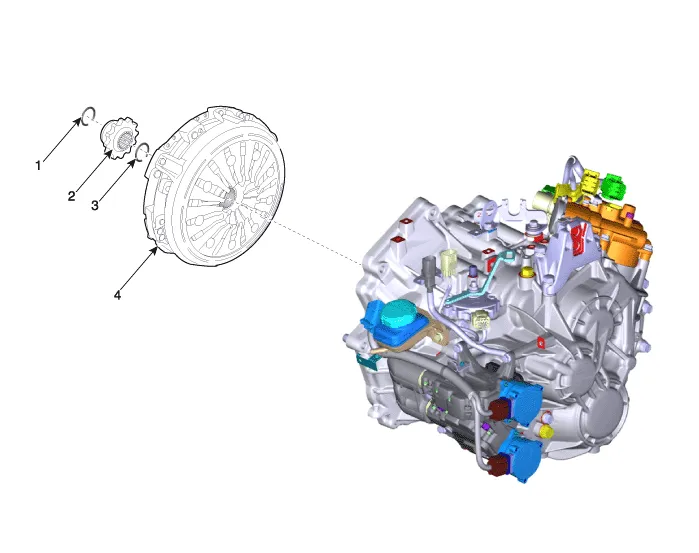

Components

1. Retaining ring
2. Spline hub

3. Snap ring
4. Dual clutch assembly

❮Description and operation

Description• Components location : DCT (Dual Clutch Transmission)• Function The dual clutch is installed within the transmission.

Dual Clutch Assembly. Repair procedures❯

Removal1.Remove the dual clutch transmission from the vehicle.(Refer to Dual Clutch Transmission System - "Dual Clutch Transmission")2.Remove the hybrid motor assembly from the dual clutch transmission assembly.
