Hyundai Ioniq (AE): Cylinder Block / Fly Wheel. Repair procedures

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Engine Mechanical System / Cylinder Block / Fly Wheel. Repair procedures

Removal and Installation

•
Be sure to read and follow the "General Safety Information and Caution" before doing any work related with the high voltage system. Failure to follow the safety instructions may result in serious electrical injuries.
•
Be sure to read and follow the "High Voltage Shut-off Procedures" before doing any work related with the high voltage system. Failure to follow the safety instructions may result in serious electrical injuries.
1.
Remove the dual clutch transmission assembly.
(Refer to Double Clutch Transmission (DCT) System - "Double Clutch Transmission (DCT)")
2.

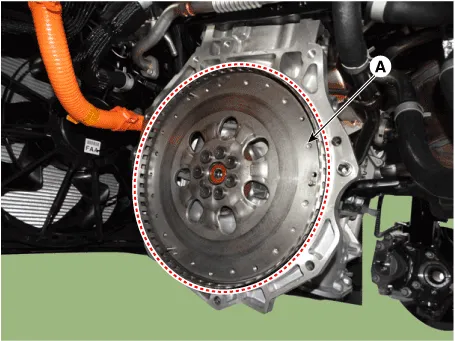

Remove the flywheel (A).
Tightening torque :
78.5 - 88.3 N.m (8.0 - 9.0 kgf.m, 57.9 - 65.1 lb-ft)


•
Do not reuse the bolts.
3.
Install in the reverse order of removal.

    Components1. Flywheel

    Components1. Water jacket separator
