Hyundai Ioniq (AE): Intake and Exhaust System / Intake Manifold. Components and components location

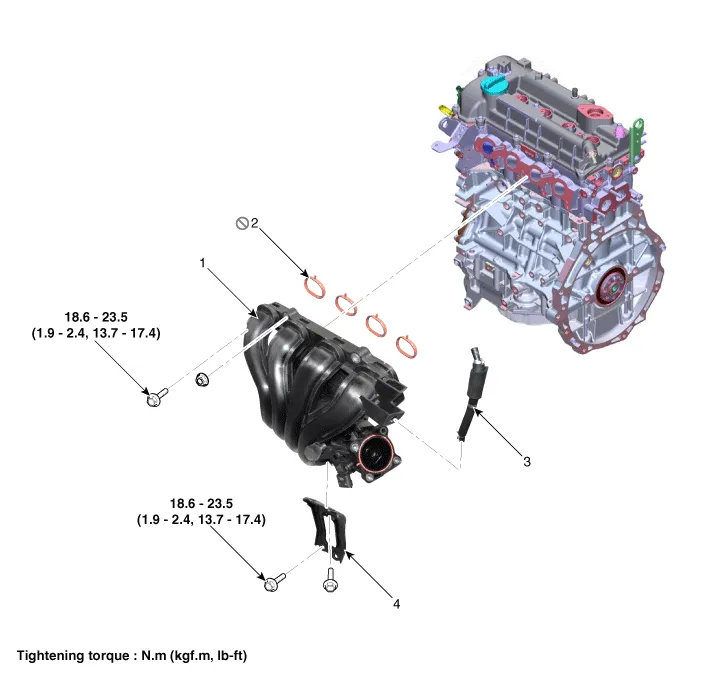

| Components |
| 1. Intake manifold assembly 2. Intake manifold gasket | 3. PCV hose 4. Intake manifold stay |
Removal and InstallationAir Cleaner Assembly1.Disconnect the battery negative terminal.2.Remove the air duct and air cleaner assembly. Tightening torque : Hose clamp : 2.
Removal and Installation1.Disconnect the battery negative terminal.2.Remove the air cleaner assembly.(Refer to Intake and Exhaust System - "Air Cleaner")3.
Other information:
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Special service tools
Special Service Tools Tool Name / Number Illustration Description LKA Compensator(09964-C1100)Used for compensating front view camera unitBCW Sensor Correction Tool Set(09958-3T500)Used to correct the blind-spot radar unit.
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Front Radar Unit. Repair procedures
Removal1.Remove the front bumper.(Refer to Body - "Front Bumper")2.Disconnect the smart cruise control unit connector (A).3.Remove the smart cruise control nuit assembly (B) from thevehicle after loosening mounting bolts.Installation1.Install in the reverse order of removal.
