Hyundai Ioniq (AE): High Voltage Battery Control System / Main Relay. Schematic diagrams

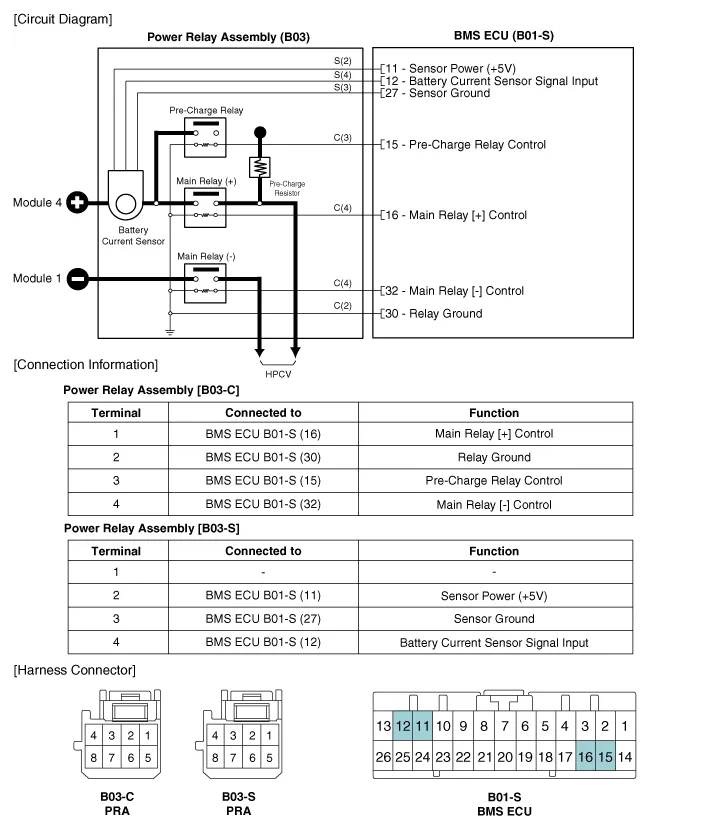

| Circuit Diagram |
Specification Item Specification ContactRated Voltage (V)450Rated Current (A)80CoilOperating Voltage (V)12Resistance (Ω)20.
Removal • Be sure to read and follow the "General Safety Information and Caution" before doing any work related with the high voltage system.
