Hyundai Ioniq (AE): Motor Driven Power Steering / MDPS Column and Housing. Repair procedures
| Removal |
| 1. | Remove the MDPS assembly. (Refer to Steering System - "MDPS Assembly") |
| 2. | Remove the MDPS control unit. (Refer to Steering System - "MDPS Control Unit") |
| 3. | Remove the MDPS motor. (Refer to Steering System - "MDPS Motor") |
| Installation |
| 1. | Install in the reverse order of removal. |

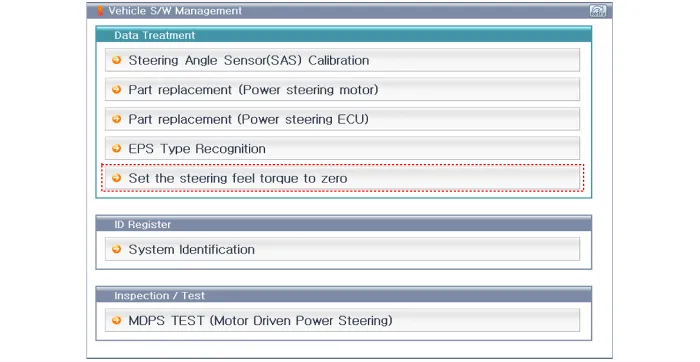

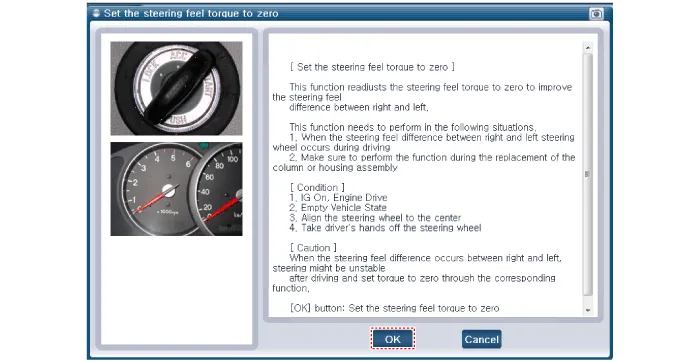

| 2. | Perform "set the steering feel torque to zero" using the GDS.
|
| 3. | Conduct the "ASP Calibration" by GDS. (Refer to MDPS Assembly - "Diagnosis with GDS") |
| 4. | Conduct the "EPS Type Recognition" by GDS. (Refer to MDPS Assembly - "Diagnosis with GDS") |
| 5. | Check the DTC. |
| 6. | Turn off the IGN switch and wait for 20 seconds or more. Then check the operation after starting the engine. |
Replacement • If a DTC occurs in the ECU, check the connectors and wiring. If no problem is found, replace the ECU.
Removal1.Disconnect the battery negative cable from the battery and then wait for at least 30 seconds.2.Turn the steering wheel so that the front wheels are placed in the straight ahead position.
