Inspection
1.
Check the temperature sensor resistance.

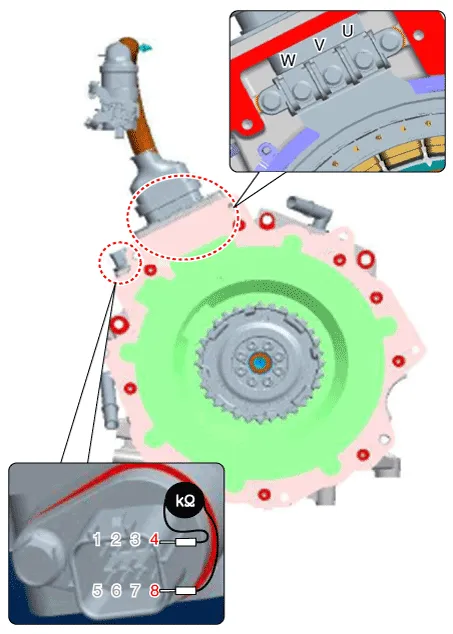

[Hybrid drive motor]
Measuring equipment : Multimeter
Category
Inspection area
Inspection criteria
Remarks
Resistance
(Temperature sensor)
Pin 4 - 8
8kΩ (30°C / 86°F) - 20kΩ (10°C / 50°F)
10 - 30°C / 50 - 86°F

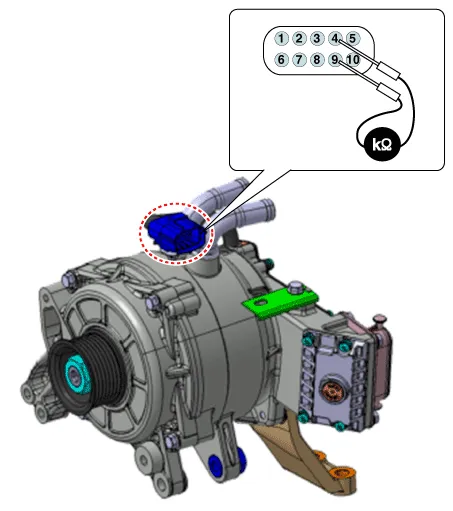

[Hybrid starter generator (HSG)]
Measuring equipment : Multimeter
Category
Inspection area
Inspection criteria
Remarks
Resistance
(Temperature sensor)
Pin 4 - 9
126.8 kΩ
Based on ambient temperature (20°C)

2.
If you need to replace the temperature sensor, replace the HSG assembly.
(Refer to Hybrid Motor Assembly - "Hybrid Starter Generator".)

    Circuit DiagramTemperature sensor (hybrid drive motor)Resolver sensor (HSG)
