Hyundai Ioniq (AE): Hybrid Motor Control System / Motor Temperature Sensor. Schematic diagrams
| Circuit Diagram |

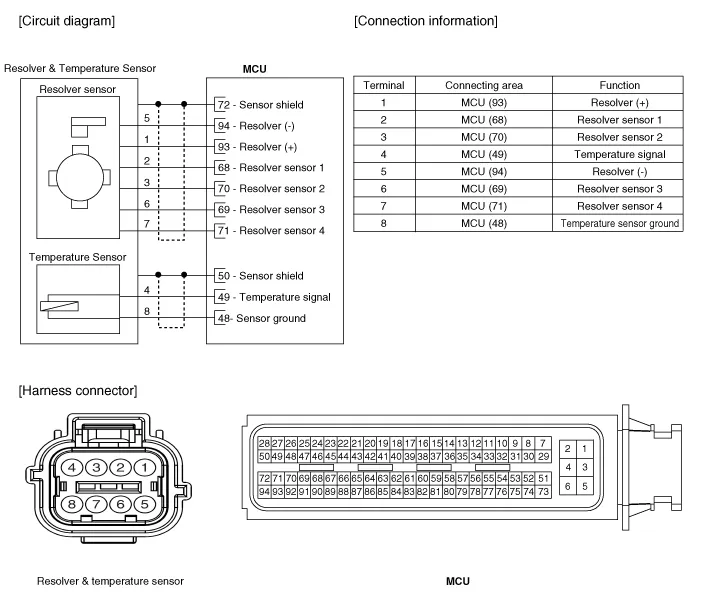

| Temperature sensor (hybrid drive motor) |

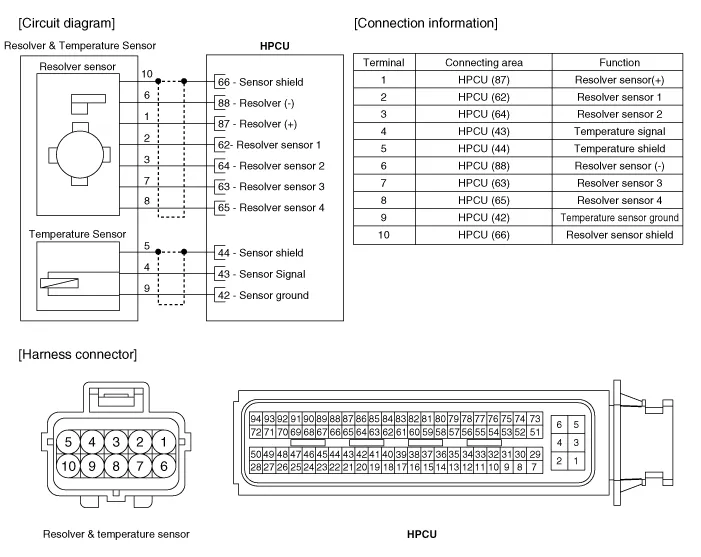

| Resolver sensor (HSG) |
Description• Motor temperature affects the motor power significantly.• If the motor overheats, its main components, including permanent magnet, stator coil, etc.
Inspection1.Check the temperature sensor resistance. [Hybrid drive motor] Measuring equipment : Multimeter Category Inspection area Inspection criteria Remarks Resistance(Temperature sensor)Pin 4 - 88kΩ (30°C / 86°F) - 20kΩ (10°C / 50°F)10 - 30°C / 50 - 86°F [Hybrid starter generator (HSG)] Measuring equipment : Multimeter Category Inspection area Inspection criteria Remarks Resistance(Temperature sensor)Pin 4 - 9126.
