Hyundai Ioniq (AE): High Voltage Battery Control System / Pre Charge Relay. Description and operation

Description
The Power Relay Assembly (PRA) consists of the positive and negative main relays, pre-charge relay, pre-charge resistor and battery current sensor. It is located inside the battery pack assembly and controls the high voltage power circuit between the high voltage battery and inverter by the control signal of BMS ECU.

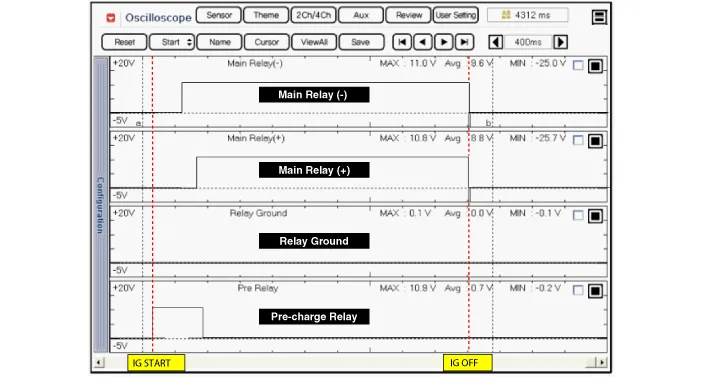

[PRA Operation Sequence]

    Removal    â€¢ Be sure to read and follow the "General Safety Information and Caution" before doing any work related with the high voltage system.

    Specification Item Specification ContactRated Voltage (V)450Rated Current (A)20CoilOperating Voltage (V)12Resistance (Ω)40.
