Hyundai Ioniq (AE): Electric EGR Control Valve / Schematic diagrams

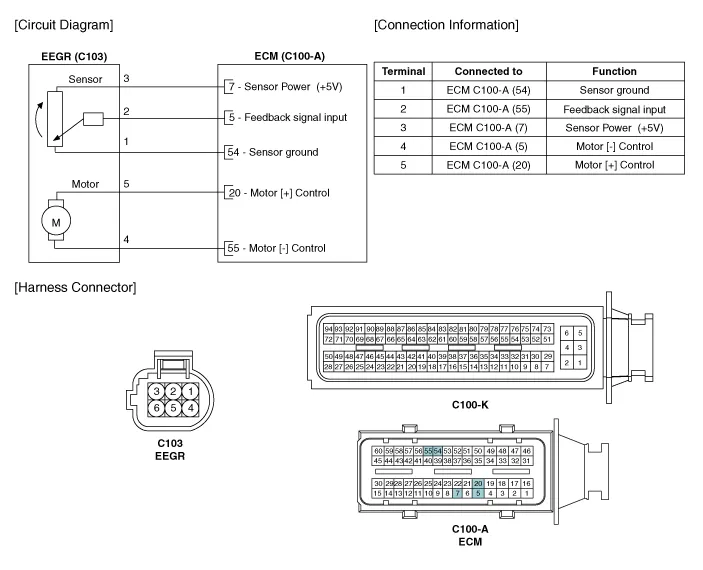

| Circuit Diagram |
Signal WaveformFig.1) Duty control [EEGR Motor (-)] at deceleration or idleFig.2) Duty control [EEGR Motor (+)] at acceleration
Inspection[Motor]1.Turn the ignition switch OFF.2.Disconnect the EEGR valve connector.3.Check that the EEGR valve is stuck by foreign material. 4.Measure resistance between motor 1 and 3 control terminals of the motor.
