Hyundai Ioniq (AE): Electric EGR Control Valve / Troubleshooting

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Engine Control/Fuel System / Engine Control System / Electric EGR Control Valve / Troubleshooting

Signal Waveform

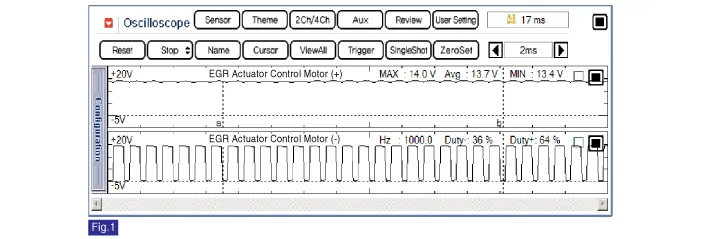

Fig.1) Duty control [EEGR Motor (-)] at deceleration or idle

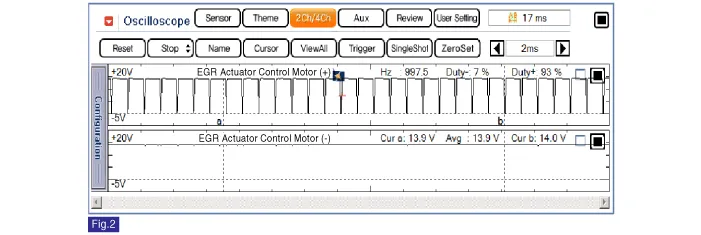

Fig.2) Duty control [EEGR Motor (+)] at acceleration

    Specification[Motor] Item Specification Coil Resistance (Ω)2.37 - 2.7 [Position Sensor] Item Specification Opened Voltage (V) 0.

    Circuit Diagram
