Hyundai Ioniq (AE): Cooling System / Water pump. Components and components location

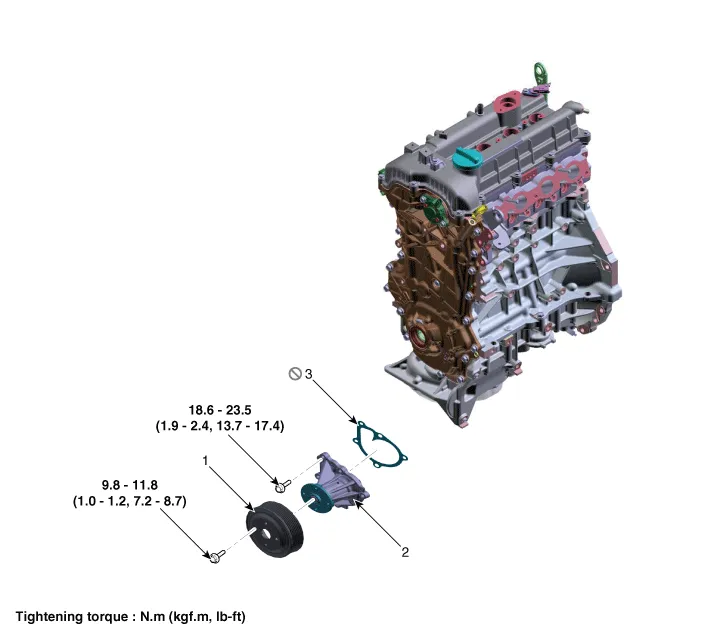

| Components |
| 1. Water pump pulley 2. Water pump | 3. Gasket |
Removal and installationWater Temperature Control Assembly1.Disconnect the battery negative terminal.2.Loosen the drain plug, and drain the engine coolant.
Removal1.Loosen the drain plug, and drain the engine coolant. Remove the reservoir cap to help drain the coolant faster.(Refer to Cooling System - "Coolant")2.
