Hyundai Ioniq (AE): Cooling System / Water Temperature Control Assembly. Components and components location

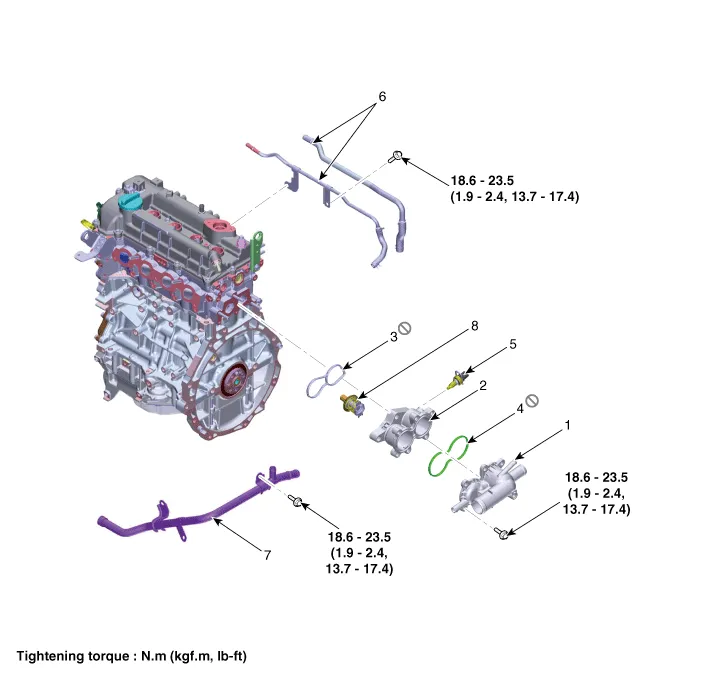

| Components |
| 1. Water temperature control (WTC) outlet fitting 2. Water temperature control (WTC) housing 3. Water temperature control (WTC) gasket 4. Water temperature control (WTC) outlet fitting gasket | 5. Water temperature sensor 6. Return & degassing pipe & hose 7. Heater pipe 8. Separate cooling thermostat |
Removal and installation1.Loosen the drain plug, and drain the engine coolant. Remove the reservoir cap to help drain the coolant faster.(Refer to Cooling System - "Coolant")2.
Removal and installationWater Temperature Control Assembly1.Disconnect the battery negative terminal.2.Loosen the drain plug, and drain the engine coolant.
Other information:
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: In-car Sensor. Repair procedures
Diagnosis With GDS1.The heating, ventilation and air conditioning can be quickly diagnosed failed parts with vehicle diagnostic system (GDS).※ The diagnostic system (GDS) provides the following information.(1) Self diagnosis : Checking the failure code (DTC) and display.
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Ambient Temperature Sensor. Description and operation
DescriptionThe ambient temperature sensor is located at the front of the condenser and detects ambient air temperature. It is a negative type thermistor; resistance will increase with lower temperature, and decrease with higher temperature.The sensor output will be used for discharge temperature control, temperature regulation door contrl, blower m
