| Component Location |

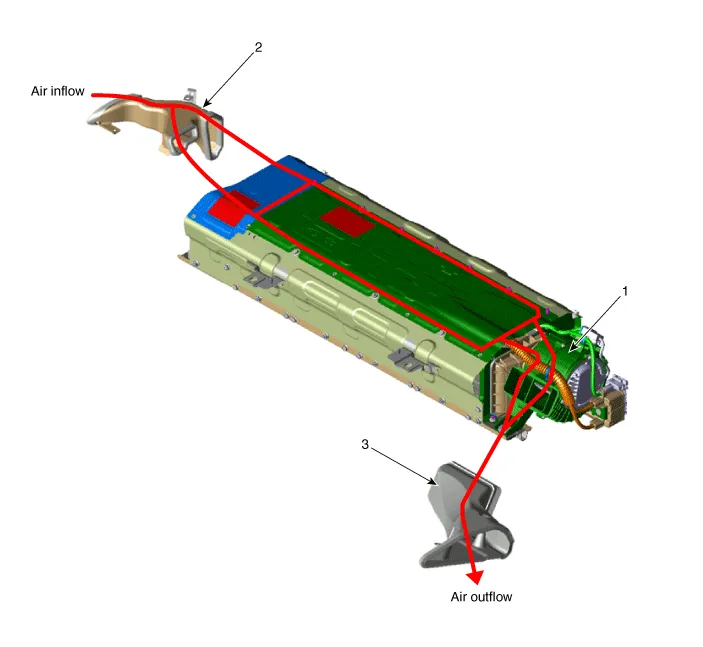

| 1. Cooling Fan 2. Cooling Duct (Inlet) | 3. Cooing Duct (Outlet) |
DescriptionThe cooling Fan consists of the main connector, the cooling fan relay and the BLDC motor. It is controlled by the BMS ECU PWM signal which varies with the high voltage battery condition (9-Speed).
Inspection1.Turn the ignition switch OFF.2.Disconnect the temperature control actuator connector.3.Verify that the temperature control actuator operates to the cool position when connecting 12V to terminal 3 and grounding terminal 7.Verify that the temperature control actuator operates to the warm position when connected in reverse.
RemovalWarning Indicator1.Disconnect the negative (-) battery terminal.2.Remove the mirror (A).InstallationWarning Indicator1.Install the outside mirror.2.Connect the negative (-) battery terminal.Inspection1.Apply battery voltage to each terminal as shown in the table and verify that the mirror operates properly.
