Hyundai Ioniq: AVN System / USB Jack. Schematic diagrams

Hyundai Ioniq (AE) 2017-2025 Service Manual / Body Electrical System / AVN System / USB Jack. Schematic diagrams

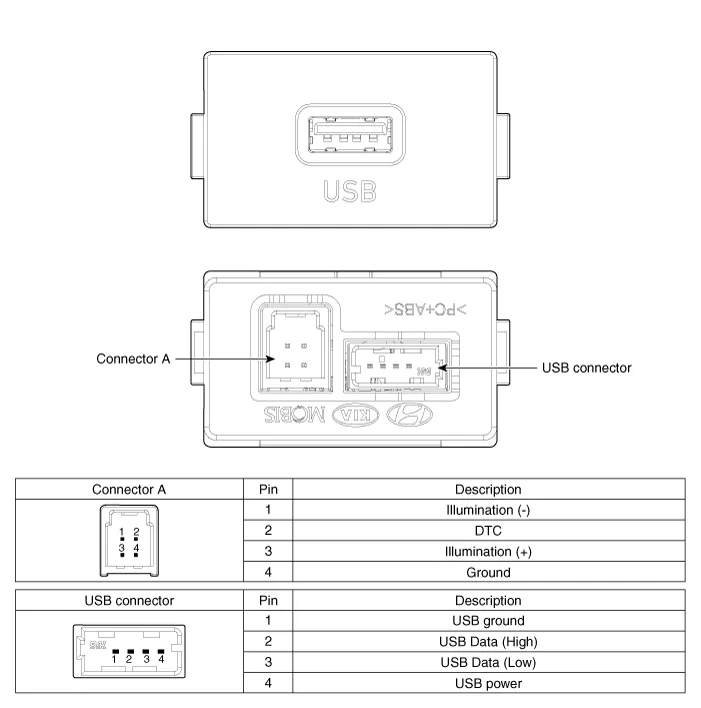

Circuit Diagram
