Hyundai Ioniq: RCCW (Rear Cross-Traffic Collision Warning) / Warning type

Hyundai Ioniq (AE) 2017-2023 Owner's Manual / Driving your vehicle / Blind-spot Collision Warning (BCW) system / RCCW (Rear Cross-Traffic Collision Warning) / Warning type

Hyundai Ioniq. Warning type

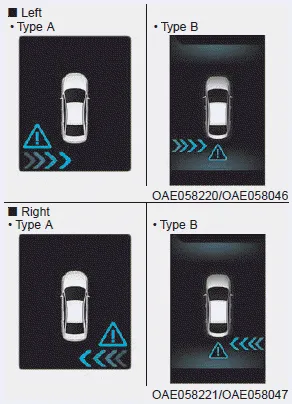

If the vehicle detected by the sensors approaches your vehicle, the warning chime will sound, the warning light on the outer side view mirror will blink and a message will appear on the LCD display.

Information

  • The warning chime will turn off when:
    - The detected vehicle moves out of the sensing area or
    - when the vehicle is right behind your vehicle or
    - when the vehicle is not approaching your vehicle or
    - when the other vehicle slows down.
  • The system may not operate properly due to other factors or circumstances. Always pay attention to your surroundings.
  • If the sensing area near the rear bumper is blocked by either a wall or barrier or by a parked vehicle, the system sensing area may be reduced.

WARNING

  • With the system activated, the warning light on the outer side view mirror will illuminate whenever a vehicle is detected at the rear side by the system. To avoid accidents, do not focus only on the warning light and neglect to see the surrounding of the vehicle.
  • Drive safely even though the vehicle is equipped with a Blind-spot Collision Warning (BCW) system and Rear Cross-Traffic Collision Warning (RCCW). Do not solely rely on the system but check your surrounding before changing lanes or backing the vehicle up. The system may not alert the driver in some conditions so always check your surroundings while driving.
  • The Blind-spot Collision Warning (BCW) system and Rear Cross-Traffic Collision Warning (RCCW) are not a substitute for proper and safe driving practices. Always drive safely and use caution when changing lanes or backing up your vehicle.The Blindspot Collision Warning (BCW) system may not detect every object alongside the vehicle.

NOTICE

  • The system may not work properly when the bumper has been damaged, or if the rear bumper has been replaced or repaired.
  • The sensing range differs somewhat according to the width of the road. When the road is narrow, the system may detect other vehicles in the next lane Or when the road is wide, the system may not detect other vehicles in the next lane.
  • The system may turn off due to strong electromagnetic waves.

    RCCW (Rear Cross-Traffic Collision Warning)

    The Rear Cross-Traffic Collision Warning function monitors approaching cross traffic from the left and right side of the vehicle when your vehicle is in reverse...

    Detecting sensor

    The sensors are located inside the rear bumper. Always keep the rear bumper clean for the proper operation of the system. Warning message Blind-Spot Collision Warning (BCW) system disabled...
