Hyundai Ioniq (AE): Clutch Actuator Assembly / Description and operation
| Description |
| • |

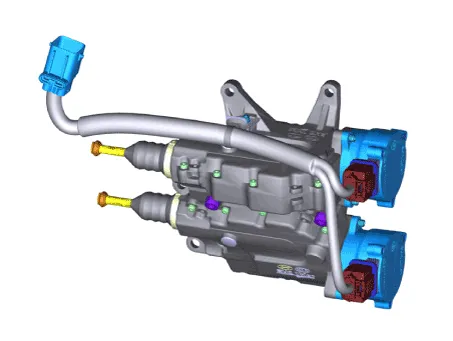

Components location : DCT (Dual Clutch Transmission)
|
| • |
Function
The clutch actuator receives signals from the Transmission Control Module (TCM) and controls the clutch. |
Specification Item Condition Specifications Resistance (line to line)Motor 157 mΩ ±10 %Motor 257 mΩ ± 10 %Rated voltage12 VMax.
Circuit Diagram
Other information:
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Heater Unit. Components and components location
Component Location1. Heater unit assemblyCompoents1. Heater core cover2. Heater core & Seal assembly3. Mode actuator [LH]4. Temperature control actuator [LH]5. Shower duct [LH]6. Duct sensor [Floor]7. PTC Heater8. Duct sensor [Vent]9. Heater & Evaporator lower case10.
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: PTC Heater. Description and operation
DescriptionThe PTC (Positive Temperature Coefficient) heater is installed at the exit or the backside of the heater core.The PTC heater is an electric heater using a PTC element as an auxiliary heating device that supplements deficiency of interior heat source in highly effective hybrid engine.
