Hyundai Ioniq (AE): Active Air Flap (AAF) / Components and components location
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Engine Mechanical System / Cooling System / Active Air Flap (AAF) / Components and components location
| Components |

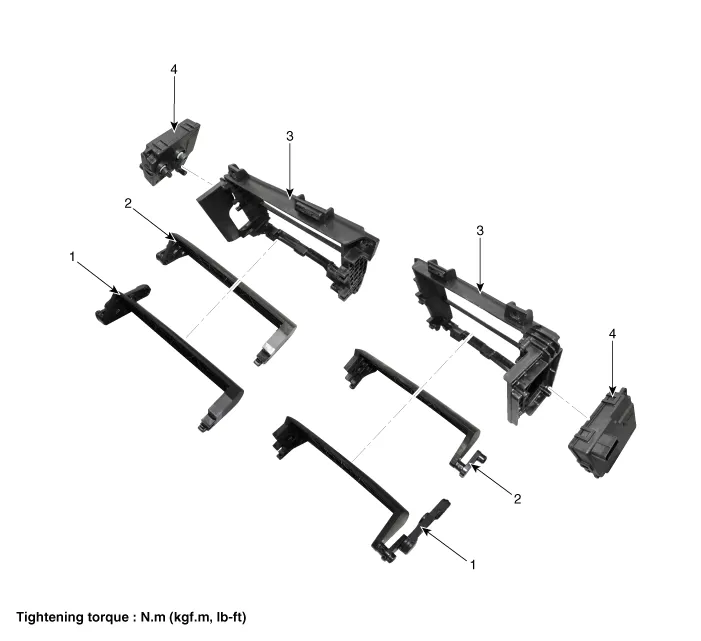

| 1. Air duct 2. Flap | 3. Housing 4. Actuator assembly |
Specifications Items Specifications Operating temperature -31 - 185°F (-35 - 85°C) Operating voltage DC 9 - 16V Rated voltage DC 12V Rated current (No load) 300mA or less [LH][RH]
Schematic DiagramCircuit Diagram
