Specifications
Items
Specifications
Operating temperature
-31 - 185°F (-35 - 85°C)
Operating voltage
DC 9 - 16V
Rated voltage
DC 12V
Rated current (No load)
300mA or less

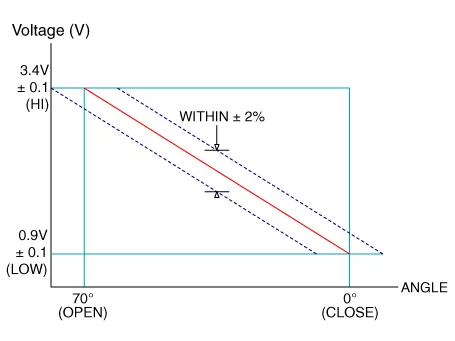

[LH]

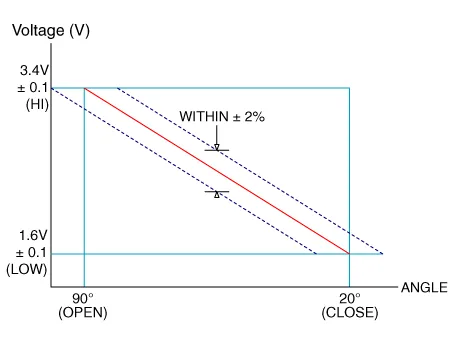

[RH]

    DescriptionThe AAF (Active Air Flap) is located between radiator grille and radiator, and consists of an actuator and 6 air flaps. The system receives information from EMS, FATC, TCU, MCU and LDC via CAN communication .

    Components1. Air duct2. Flap3. Housing4. Actuator assembly
